Supported Sheet Metal Materials
Supported Sheet Metal Fabrication Processes

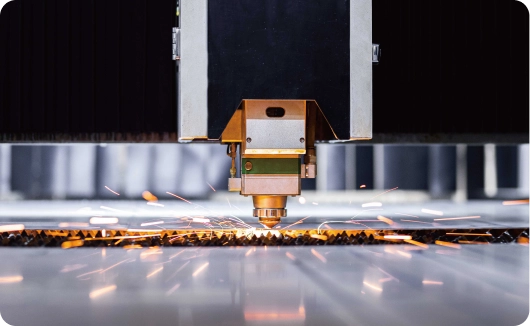

Laser Cutting
Cutting flat sheet profiles and internal features

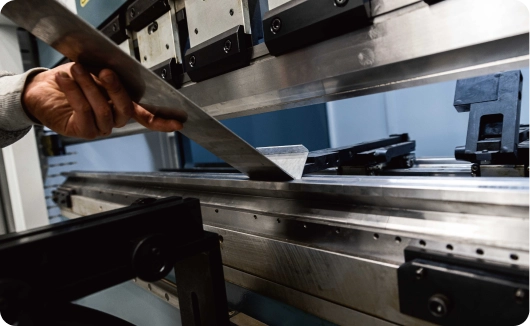

Bending
Forming sheet metal into angled parts

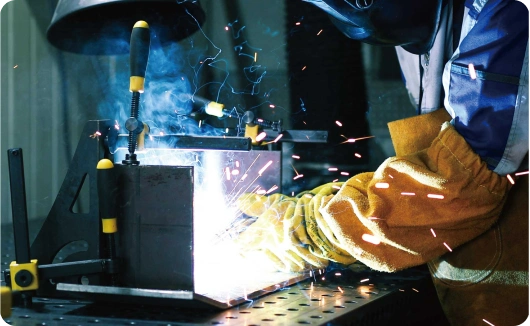

Welding
Joining multiple parts into assemblies

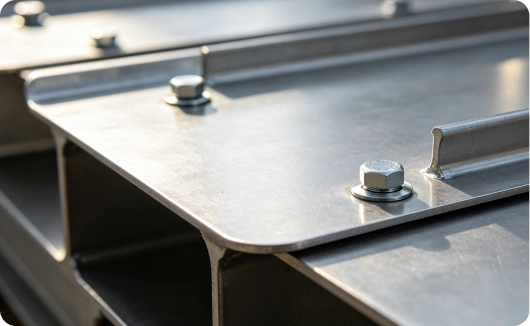

Riveting
Fastener installation for assemblies

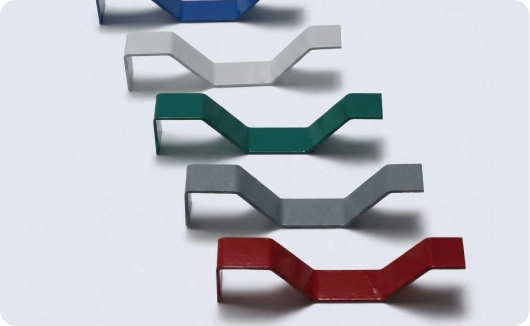

Surface Finishing
Post-processing for protection and appearance
Sheet Metal Fabrication Tolerances and Notes
Surface Finishing Options for Sheet Metal Parts
Sheet Metal Parts We Commonly Manufacture

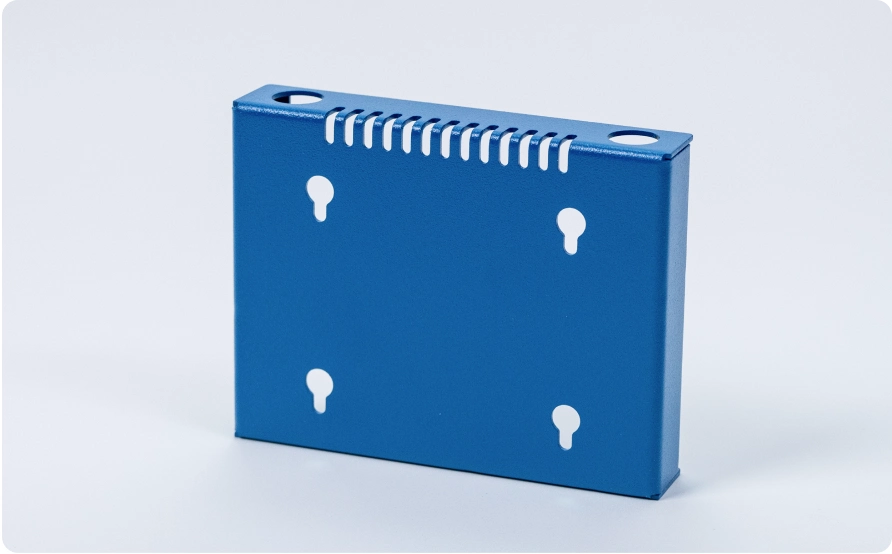

Enclosures
Common Materials:
Aluminum 5052, Stainless Steel 304, Galvanized Steel Sheet
Typical Processes:
Laser cutting, bending, welding, surface finishing

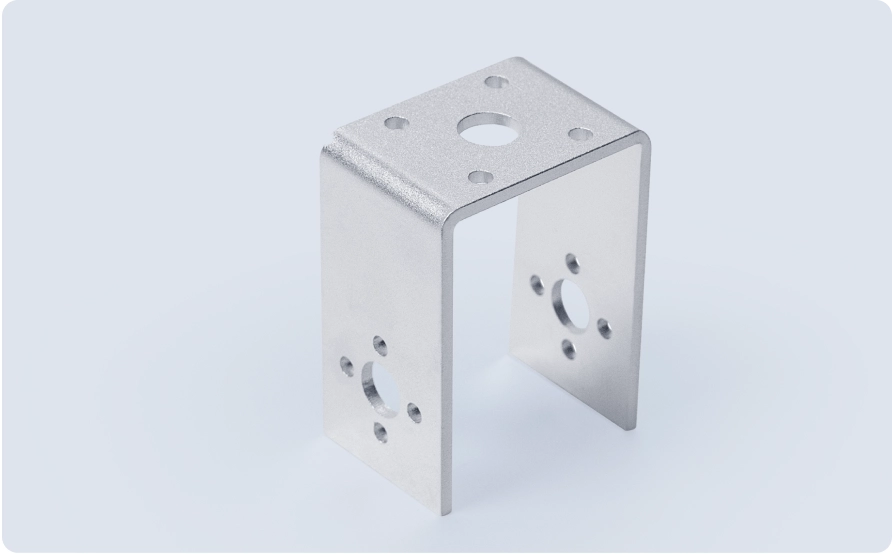

Brackets
Common Materials:
Cold Rolled Sheet, Stainless Steel 304, Aluminum 5052
Typical Processes:
Laser cutting, bending, tapping or hardware insertion, surface finishing

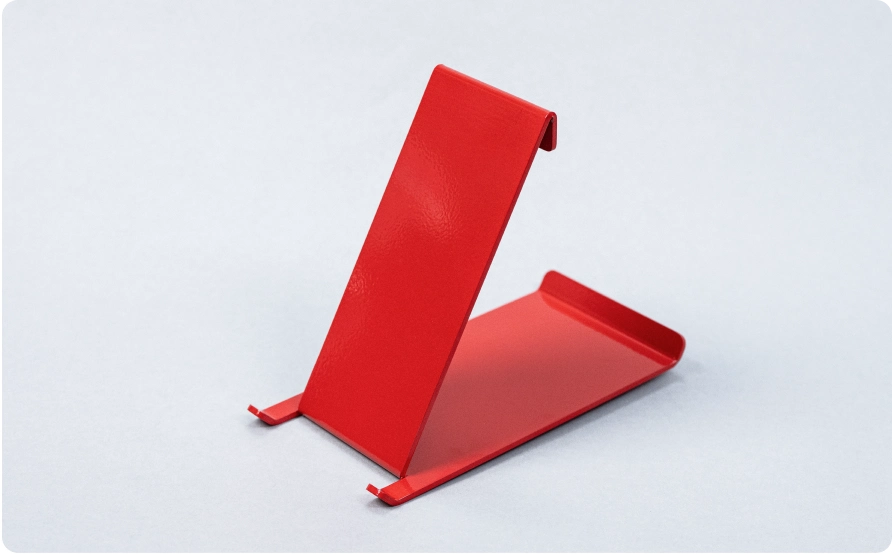

Mounting Plates
Common Materials:
Cold Rolled Sheet, Stainless Steel 304, Galvanized Steel Sheet
Typical Processes:
Laser cutting, bending, tapping or hardware insertion, surface finishing
Design Guidelines for Ordering Sheet Metal Parts
Review the checklist below before placing an order to help improve file accuracy, manufacturability, and processing efficiency.
File Preparation
- Upload a 3D STEP file for every order.
- Add 2D files when needed for marking or special features.
- Use the actual flat shape after bending for silkscreen and laser marking files.
- Keep text in DWG or DXF files as double-line fonts with 0.2 mm line width.
Design Check
- Include all related parts in one 3D file for assembly review.
- Make sure bend features and hole positions meet supported limits.
- Keep the minimum hole diameter at ≥ half of sheet thickness and ≥ 1 mm.
- Keep the minimum hole spacing at ≥ 1 mm.
Order Information
- Specify material, thickness, finish, and process requirements clearly.
- Add notes for threading, riveting, or welding if needed.
- Match custom part names to the design file for sub-component settings.
- Keep uploads within 20 drawings and 100 MB per file.
