EDM Hole Drilling: Process, Capabilities, Applications, and Limitations

EDM hole drilling is used on conductive metals when conventional drilling cannot reach features due to material hardness, depth, or geometry constraints.

It removes material using controlled electrical discharges through a tubular electrode rather than cutting with a rotating tool. This makes it a viable option for hardened steels, carbide parts, and deep, narrow holes. In such parts, tool contact becomes unstable during normal drilling.

In CNC machining environments, EDM drilling is mainly used for starter holes for wire EDM, deep cooling passages in molds, and micro holes in high-precision components.

The process does not rely on mechanical force, so tool breakage and cutting stress are not limiting factors. Instead, control comes from discharge energy, flushing efficiency, and electrode condition.

This article covers:

• How small hole EDM drilling works in actual machining conditions.
• The process types used in industry.
• What hole sizes and depths can realistically be achieved.
• How the quality of holes is controlled, where conventional drilling fails.
• When to use EDM over other techniques.

What Is EDM Drilling

EDM drilling is a non-contact CNC machining process. It creates holes using controlled electrical sparks between a tubular electrode and the workpiece, instead of using cutting force.

In this process, the electrode never physically cuts the material. Material removal occurs through electrical discharge, so no mechanical load is applied to the part. This allows stable hole making in hardened steels, carbide, and other materials where mechanical drills would wear out or break.

How EDM Drilling Works

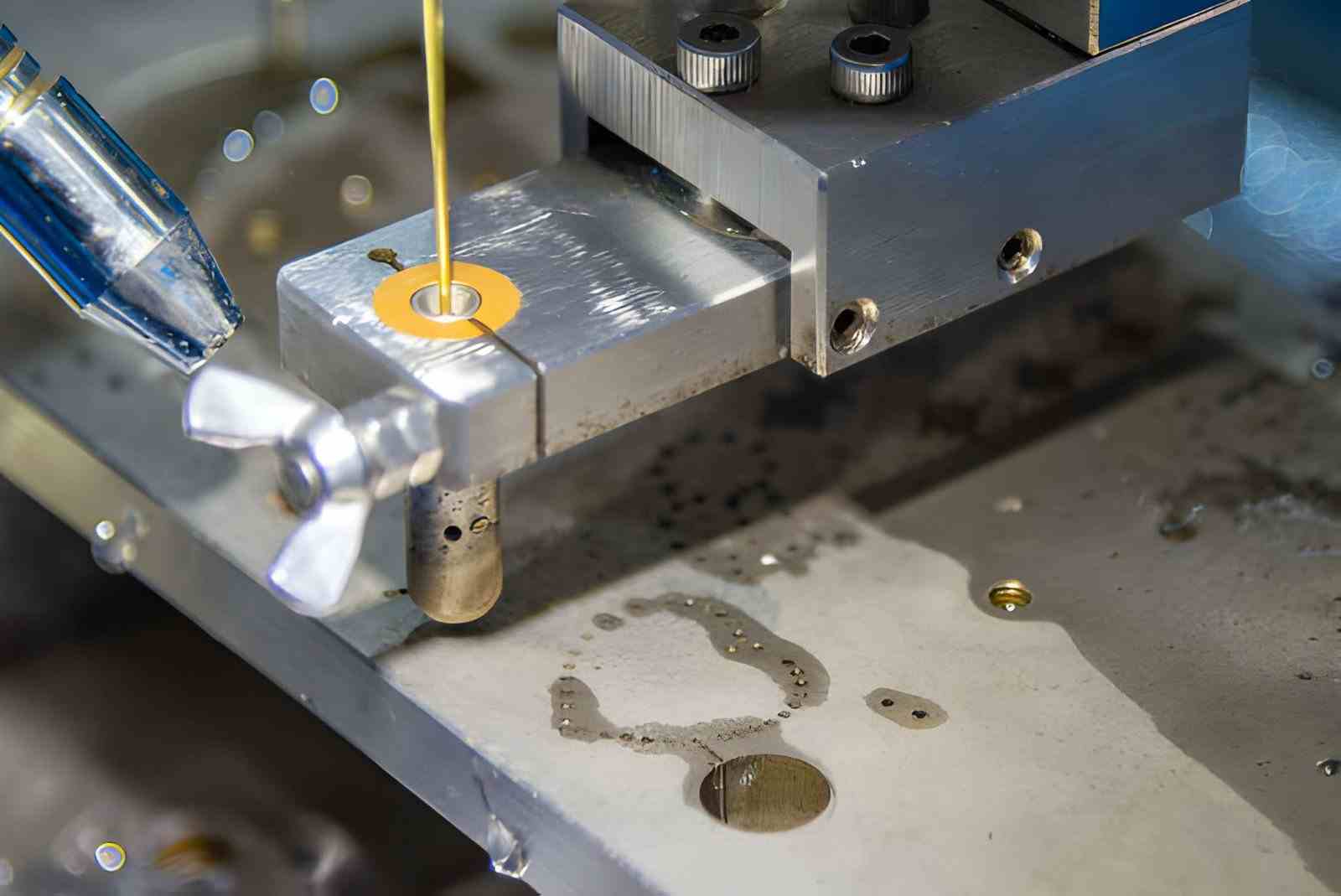

The image shows a close-up of a metal workpiece being cut using an automatic EDM machine. (iStock)

EDM drilling removes material through controlled electrical sparks. The process depends on discharge energy, electrode geometry, and flushing flow to form the precise hole. Each factor directly impacts stability, hole depth, and surface condition.

Electrical discharge erosion mechanism

• A controlled voltage gap (typically in the micron range, around 0.01 - 0.05 mm) is maintained between the electrode and the workpiece, and electrical discharges occur across this gap.
• Each spark often reaches extremely high localized temperatures (several thousand degrees Celsius), melting and vaporizing tiny material zones.
• Repeated pulsed discharges (controlled by pulse-on/off time in microseconds) build the hole gradually. Unstable pulse settings can cause taper or uneven erosion.

Tubular electrode structure and flushing path

• The electrode used is hollow. It allows dielectric fluid (usually deionized water or oil) to pass through the center directly into the machining zone.
• High-pressure flushing (commonly 5 to 20 bar, depending on machine setup) removes debris from deep holes to prevent arc instability and short-circuiting.
• Continuous flushing stabilizes spark gap conditions, which directly influences hole straightness and depth consistency in high aspect ratio drilling.

No cutting force and its practical implications

• The electrode operates without physical contact. So there is effectively zero cutting force on the workpiece surface.
• Thin sections, hardened steel (above 50 to 60 HRC), and brittle materials can be drilled without tool deflection or breakage risk.
• Process stability depends on electrical parameters (current, pulse duration) and flushing efficiency rather than feed force or tool rigidity.

EDM Drilling Process Types

EDM drilling is used in different setups depending on hole size, depth, and how fast the job needs to run.

Some EDM drilling machines are optimized for high penetration rates in thick materials, while others are configured for small-diameter, high-accuracy holes. The hole type also changes how the process is controlled in production.

Fast hole EDM (hole popper systems)

• Used for quick drilling of medium to large diameter holes, usually around 0.3 mm to 3.0 mm in steel and hardened materials.
• Removes material at a high rate, mainly used when the hole is needed as a starting point for another process, like wire EDM.
• Works well on thick plates and mold blocks where speed is more important than surface condition.
• Electrode wears faster in this mode, so it is commonly used for short cycle operations rather than fine finishing.

Small hole EDM drilling (precision-focused setups)

• Used for very small holes, typically between 0.1 mm and 0.5 mm, where conventional drilling cannot operate reliably.
• Works with lower discharge energy to keep the hole shape stable during deep penetration.
• Common in parts like fuel nozzles, cooling channels, and fine venting holes in molds.
• The process is slower, but it provides better control over straightness in long, narrow holes.

Through-hole vs blind-hole processing differences

• Through-holes allow fluid to pass completely through the material, which helps keep debris moving out of the cutting zone.
• Blind holes trap debris at the bottom, so flushing pressure and pauses are needed to keep the process stable.
• Through-holes are easier to control in deep drilling because the discharge area stays cleaner.
• Blind hole work needs more attention to electrode wear since buildup at the bottom can affect hole shape over time.

Table 01: EDM Drilling Process Comparison

In practice, the differences between these EDM drilling modes are not only about hole size or speed. They mainly come from how discharge energy is delivered, how flushing is handled, and how much control is needed to keep the spark stable as depth increases.

What Hole Drilling EDM Machining Can Actually Achieve

EDM hole drilling is used when depth, hardness, or geometry makes normal drilling unstable. Its capability is defined by how far it can maintain a stable discharge, not by cutting speed or surface quality.

Hole diameter range and achievable aspect ratios

• Typical working range stays between 0.1 mm and 3.0 mm. This is primarily controlled by electrode tube size and flushing pressure.
• Stable drilling is typically maintained in the 15:1 to 25:1 range, with higher ratios requiring controlled conditions.

Accuracy limits and taper behavior in deep holes

• Diameter control is typically within ±0.02–0.05 mm for shallow holes, but shifts closer to ±0.1 mm as electrode wear increases in longer holes.
• Taper develops naturally in deep drilling because the discharge energy and flushing strength reduce as depth increases.

Surface finish and recast layer presence

• The hole wall surface is formed by melting and re-solidification, which leaves a rougher texture compared to mechanical drilling.
• A thin recast layer remains after machining, which can affect sealing or flow performance in precision applications where post-processing may be required.

What Controls Hole Quality in EDM Drilling

Hole quality in EDM drilling depends on how steady the spark process stays during cutting. Small changes in energy, electrode condition, and flushing flow quickly show up in hole shape, depth stability, and surface condition.

Discharge energy and pulse stability

• Higher discharge energy removes material faster, but it also increases side erosion, which can slightly open up the hole beyond the set diameter.
• If pulse timing is not stable, spark gaps fluctuate, and the hole wall starts showing uneven marks along depth.

Electrode wear and dimensional compensation

• The electrode slowly loses material during drilling, and this directly shifts the hole size if the wear is not adjusted in control settings.
• In long or batch runs, compensation is used so that later holes stay close to the same diameter as the first ones.

Flushing efficiency and debris evacuation

• When flushing is weak, small particles stay inside the hole and disturb the spark path, which affects straightness.
• Good flushing keeps the cutting zone clean, especially in deeper holes where debris naturally builds up at the bottom.

EDM Drilling Vs. Conventional Drilling

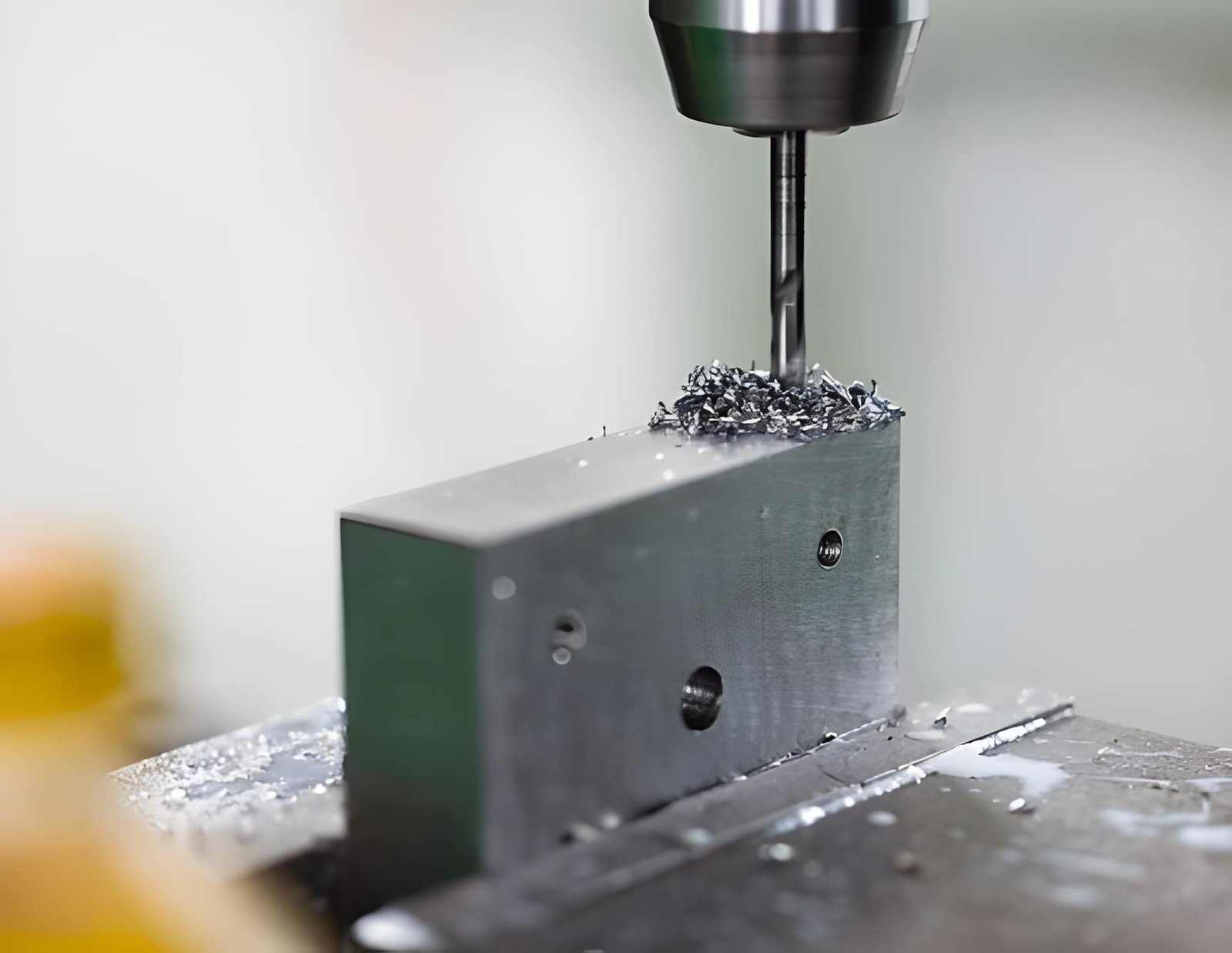

A conventional drilling machine making a hole in a metal workpiece (iStock)

These two processes are used for hole making, but they behave very differently once the material and depth increase. Conventional drilling relies on a rotating tool cutting chips out of the material.

On the other hand, EDM drilling removes material through controlled electrical sparks, so the material condition matters more than cutting force.

In production environments, the decision is not based on “which is better.” It comes from tool wear or failure risk, hole depth stability, and how clean debris evacuation is during the operation.

EDM Drilling Selection Guide: When to Use It vs Other Machining Methods

• Use EDM drilling when drill bits fail early in hardened steel and tool steel parts during pilot or deep hole operations.
• Use EDM drilling when the hole depth is high, and chip removal starts blocking tool progress in conventional drilling.
• Use conventional drilling when holes are standard size in aluminum, mild steel, or other free-cutting materials.
• Use conventional drilling when high production volume is required, and the cycle time per hole directly affects cost.

Table 02: EDM Hole Drilling vs Conventional Drilling

In practice, selection is driven by failure risk rather than preference.

Decision Hint

• EDM drilling is used when conventional drilling stops being stable. This usually shows up in hardened materials, deep holes, and very small diameters, where drills start breaking or drifting off path.
• Conventional drilling remains the default option for most CNC work because it is faster and easier to control when the material allows clean chip flow.

In practice, EDM is not a replacement for drilling. It is used when the job moves beyond what a mechanical tool can handle safely or consistently.

When Hole Drilling EDM Becomes Necessary

EDM hole drilling is not used as a first option in most CNC work. It becomes necessary when conventional drilling starts failing during actual production. The decision usually comes from tool breakage, unstable hole paths, or when the hole size is too small for mechanical tools to survive.

When conventional drilling fails (tool breakage, drift)

When drills start breaking inside the part or losing alignment during depth, EDM drilling becomes the practical choice. This often happens in hardened steels, deep cavities, or interrupted cuts where the drill cannot maintain a stable path. Instead of forcing repeated tool changes, EDM keeps the process stable because there is no cutting load on the tool.

Micro-hole and high aspect ratio requirements

Very small holes create a different problem in machining. Standard drills lose strength as the diameter reduces, and deep penetration increases the risk of bending or snapping. EDM drilling handles these cases better because hole size is controlled by the electrode, not tool rigidity. It is commonly used when holes are long and narrow, where depth is many times larger than diameter.

Pre-drilling for wire EDM operations

Wire EDM needs a starting hole to pass the wire through the material. In hardened or thick parts, conventional drilling may not reach the required depth safely. EDM drilling is used here to create a clean entry point so the wire EDM process can start without stress on the material or tool failure at the entry stage.

Limitations and Trade-offs of EDM Drilling

EDM drilling solves hard machining problems, but it comes with clear production trade-offs. It is slower than mechanical drilling, consumes electrodes during use, and changes the hole surface due to thermal erosion. These factors directly affect cycle time, cost, and post-processing needs.

Low material removal rate and cycle time impact

• EDM removes material through repeated sparks, so each hole takes longer compared to mechanical drilling.
• In deep holes, cycle time increases further because energy settings must stay stable to avoid process interruption.

Electrode consumption and tooling cost

• The tubular electrode wears during drilling, and longer or batch runs require frequent replacement or compensation.
• For small diameter holes, electrode manufacturing and handling add noticeable cost per job.

Surface integrity (recast layer and heat-affected zone)

• The hole wall is formed by melted and re-solidified material, which leaves a thin recast layer on the surface.
• This thermal layer can affect sealing or flow performance, so secondary finishing may be needed in sensitive applications.

Common Problems in EDM Hole Drilling (and How to Solve Them)

EDM hole drilling issues are usually not caused by a single parameter. In most cases, they come from a combination of flushing conditions, discharge stability, and electrode wear behavior as depth increases.

The key is not just understanding why they happen, but recognizing how they show up during machining.

Taper in Deep Holes

Taper becomes visible when hole depth increases and the discharge conditions at the bottom start to weaken compared to the entry zone. The top section stays relatively stable, while the lower section gradually deviates.

This is usually linked to reduced flushing efficiency and energy loss at depth.

Typical fixes:

• Increase flushing pressure or improve internal flow path
• Reduce feed rate in deeper sections
• Adjust pulse energy to stabilize discharge consistency

Electrode Wear Causing Oversize

As machining progresses, the electrode gradually changes geometry. If this wear is not compensated, later holes tend to run slightly larger than earlier ones.

This effect becomes more obvious in batch production or long drilling cycles.

Typical fixes:

• Apply wear compensation in CNC control
• Use consistent electrode material and condition
• Monitor electrode length during long runs

Unstable Discharge

Unstable discharge shows up as inconsistent spark behavior, often visible through irregular surface texture or interrupted cutting progress.

It is usually linked to improper pulse settings or unstable gap conditions.

Typical fixes:

• Adjust pulse-on/pulse-off timing
• Reduce discharge energy for stability
• Verify gap control and machine parameter consistency

Debris Clogging in Deep Holes

When flushing is not sufficient, debris accumulates inside the hole. This disturbs the discharge path and can cause sudden instability or slow penetration.

It is more common in blind holes or high aspect ratio drilling.

Typical fixes:

• Increase flushing pressure or improve electrode flow channel
• Pause intermittently for debris evacuation in deep cuts
• Prefer through-hole strategy when geometry allows

EDM drilling failure modes seen in production, and how engineers usually stabilize the process.

Design Guidelines for EDM Drilled Holes (DFM)

Designing for EDM drilling is mostly about keeping the hole stable during depth and making sure debris can actually leave the cutting zone. Most issues in production come from tight geometry, weak flushing paths, or unrealistic depth expectations in the drawing.

Recommended diameter-depth combinations

• For most stable production work, holes between 0.3 mm and 1.0 mm behave predictably when depth stays within a 15:1 to 20:1 ratio.
• When depth goes beyond 20:1, the process still works, but the feed needs to slow down, and hole straightness becomes more sensitive to flushing.
• Larger diameters above 1.5 mm are easier to control at depth because the flushing space is naturally better inside the hole.
• Very small holes below 0.3 mm are possible, but they are better suited for short depth features instead of long channels.

Stock allowance for secondary finishing

• When the hole is part of a sealing or flow surface, keeping around 0.02 mm to 0.05 mm allowance helps avoid assembly issues later.
• If the hole will be reamed or honed, EDM should be treated as a rough formation step, not final sizing.
• Tight final tolerance directly from EDM is possible, but it increases cycle time and makes the process less stable in batch work.
• In practice, a small allowance gives more consistent results across multiple parts than targeting the final size in one step.

Designing for effective flushing access

• Straight or open flow paths make a noticeable difference in hole stability, especially in deep drilling.
• Closed or trapped geometries tend to collect debris, which affects straightness and increases electrode wear.
• Entry space should allow electrode alignment without obstruction; otherwise, the starting position becomes inconsistent.
• In multi-hole layouts, spacing should allow flushing pressure to stay balanced across all drilling points.

Table 03: EDM Hole Design Reference Table

Typical Applications of EDM Drilling

EDM hole drilling is used when holes are small, deep, or inside hard materials where normal drilling cannot stay stable. The selection is mainly based on the whole function, not the industry itself.

Mold and die venting and cooling holes

EDM hole drilling is used in molds and dies to create venting and cooling holes that standard drills cannot reach. These holes help remove trapped air and control heat during molding. It also works well in hardened tool steel, where drill wear becomes a problem.

Aerospace turbine and fuel nozzle components

EDM hole drilling is used for small cooling holes in turbine blades and fuel nozzles. These parts are made from heat-resistant alloys, so mechanical drilling struggles with tool life and stability. EDM makes these small, deep holes without applying cutting force on the part.

Wire EDM starter hole preparation

EDM drilling is used to make starter holes so the wire can pass through the workpiece. It is mainly used in thick or hardened parts where normal drilling cannot reach safely. The hole acts as the entry point for starting the wire EDM cutting path.
