What Is Metal Plating in CNC Machining? Process, Types & Tolerance Effects

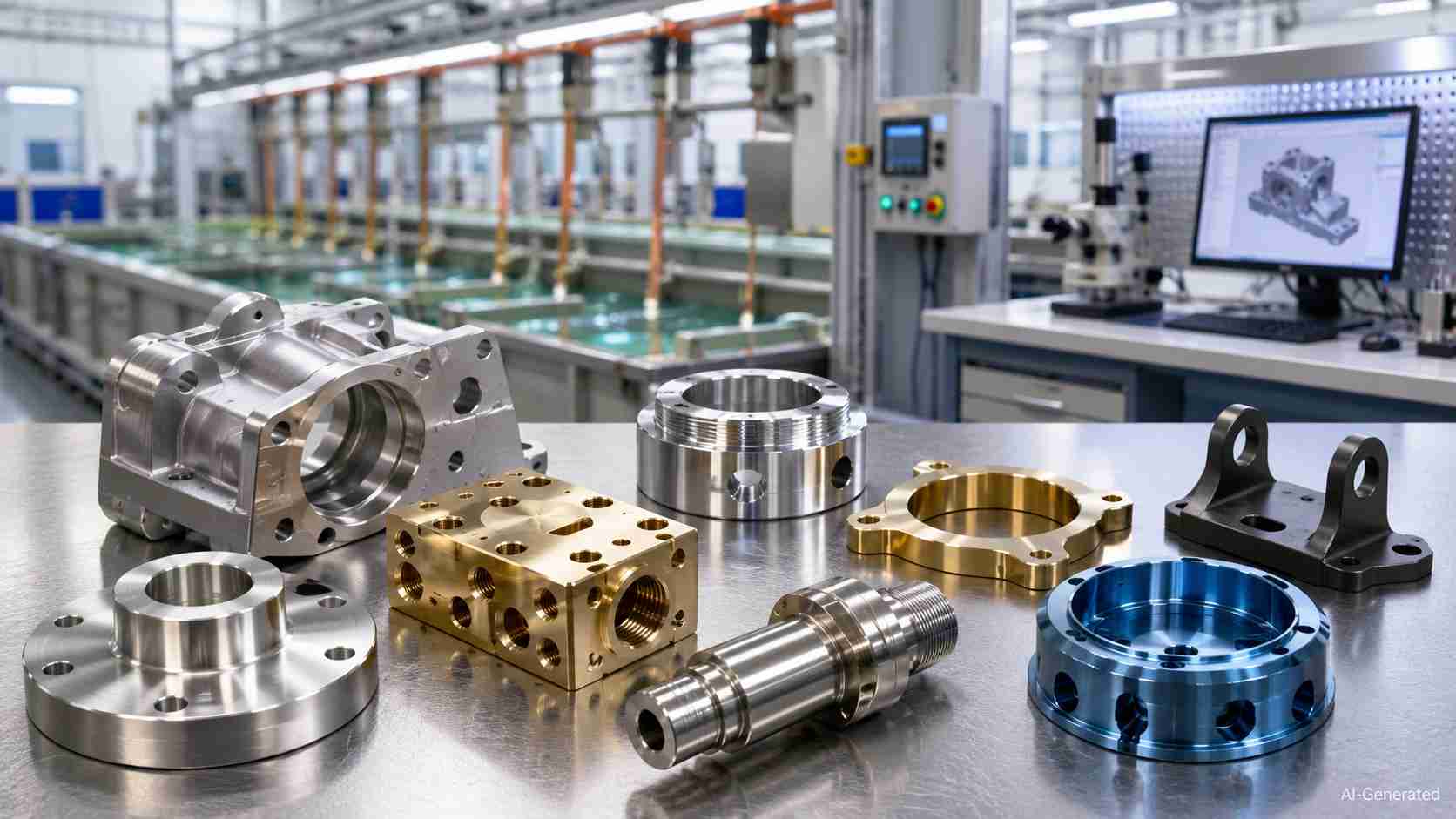

CNC metal plating process for machined precision parts

For CNC machined parts, metal plating is more than a final cosmetic layer. It adds a controlled metallic layer that can support durability, corrosion behavior, conductivity, appearance, or service life. The plating process must also be planned around base material, operating environment, tolerance requirements, and inspection needs. In precision manufacturing, plating decisions are usually made early in the design stage since every coated component gains performance value along with manufacturing responsibilities from the moment it leaves the machine.

What Is Plating in CNC Machining

In CNC machining, plating is a finishing method that deposits a metal coating onto a machined workpiece to give selected areas added engineering behavior beyond the base material.

Why CNC Machined Parts Use Plating

A machined part may leave the cutter with accurate geometry, but the application may require contact stability, low friction, solderable pads, or a protective barrier. Metal plating assigns those duties to the outer layer and keeps the core alloy for machining, weight, cost, or load capacity.

Where Plating Matters Most in Precision Parts

It is important in zones where parts touch, slide, carry current, seal, or face harsh media, such as connector pins, bearing journals, shafts, threaded inserts, valve hardware, and miniature housings. In these areas, the plated layer must work with CNC dimensions rather than hide them.

How the Plating Process Works for CNC Parts

Surface Preparation Before Plating

Before plating begins, the part is degreased, rinsed, pickled, and activated. The reason is that burrs, coolant film, oxide patches, or trapped chips can break adhesion and cause the coating to fail immediately at the first production step.

Plating Deposition and Thickness Formation

Next, the plating process builds thickness. Electroplating uses an external current to move ions onto exposed areas. Electroless plating deposits metal without an external current and gives metal plating teams a different path when recesses, holes, or delicate profiles need steadier coverage.

Post-Treatment and Quality Inspection

After deposition, the work moves through rinsing, baking, or sealing when specified, and then inspection for thickness, adhesion, hardness, and appearance. At the same time, gauges and sample checks confirm that the finish matches the print before the batch moves forward.

Common Plating Types for CNC Machined Components

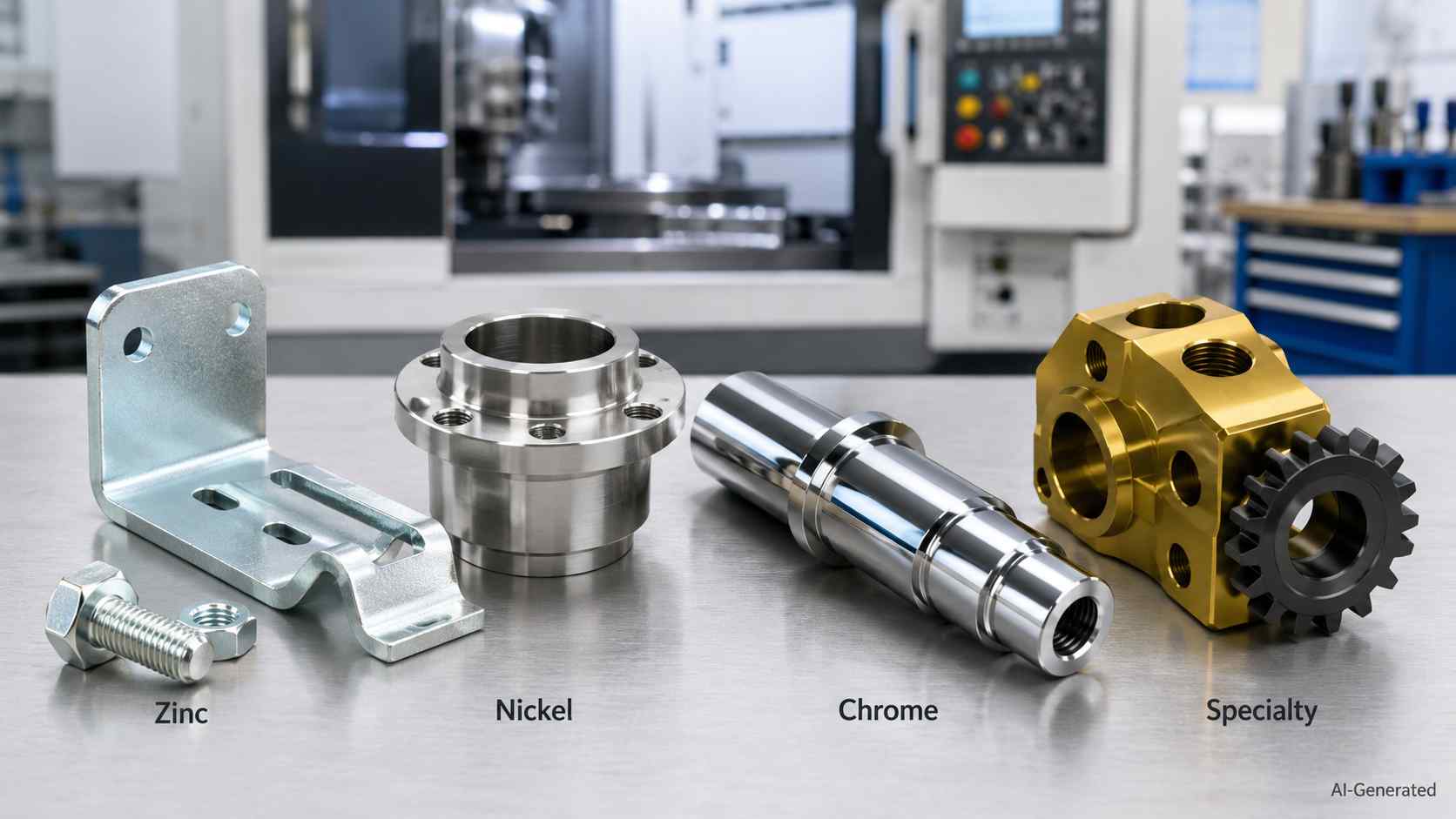

Common CNC metal plating types on machined components

Zinc Plating for Corrosion Protection

Zinc is used for steel hardware that requires low-cost corrosion protection in shop-floor or outdoor environments. It functions as a sacrificial coating and provides practical corrosion resistance without the higher cost of premium coatings.

Nickel Plating for Wear and Uniformity

Nickel plating is widely used when wear resistance, corrosion protection, and dimensional consistency are required. Electroless nickel is often selected for parts with deep recesses, internal features, or uneven geometry because it provides a more uniform thickness distribution.

Chrome and Functional Specialty Platings

Chrome plating is commonly used in applications where sliding contact, abrasion, or low-friction service is important. Nevertheless, engineers also take into consideration bath handling, environmental controls, and more recent alternative coatings before specifying them on the drawing. Hard chrome plating is often ground or polished after deposition in high-wear applications. Decorative chrome and hard chrome serve different purposes in industrial applications.

Electroplating vs Electroless Plating: Key Engineering Differences

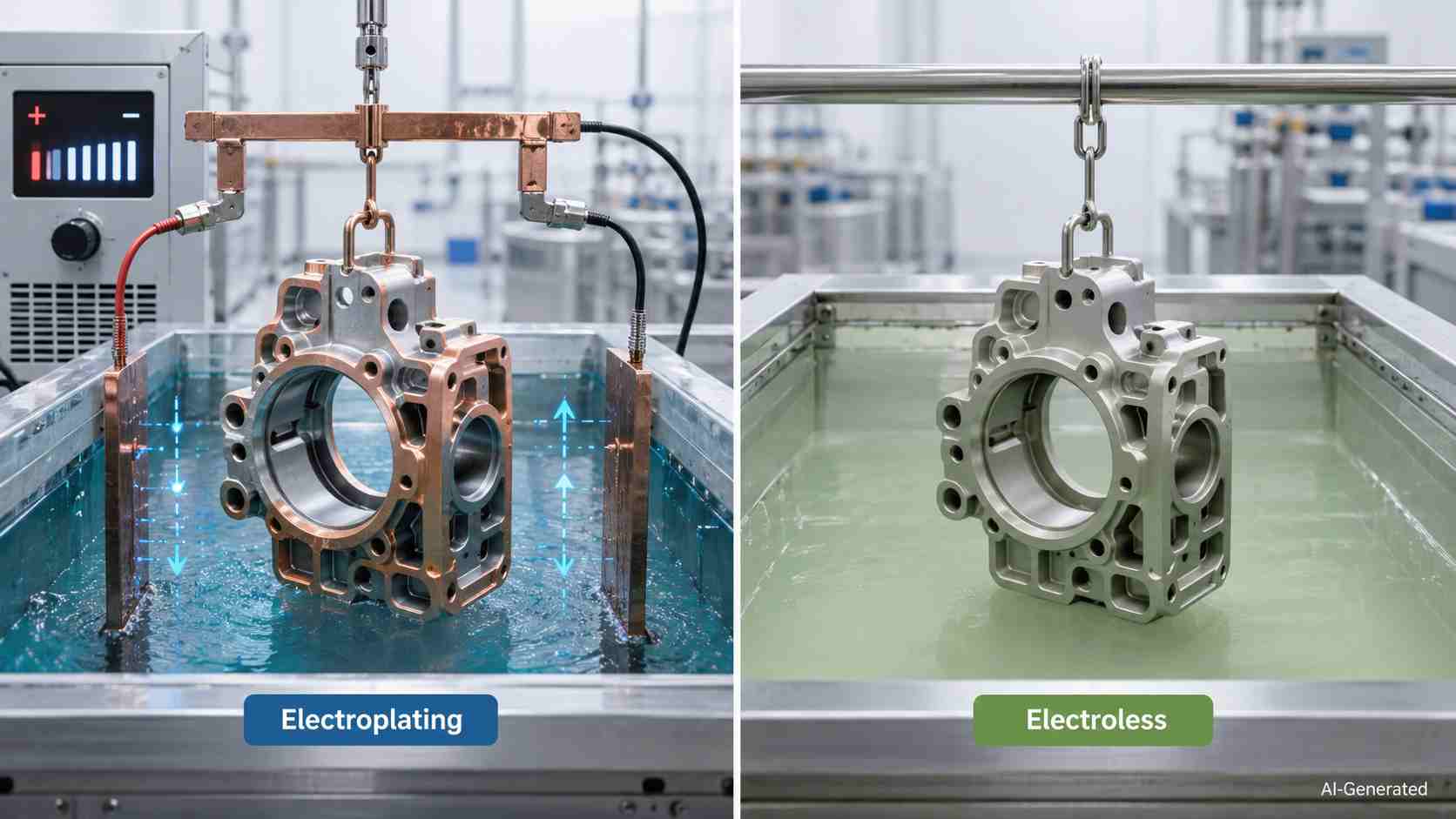

Electroplating vs electroless plating for CNC parts

Process Mechanism Differences

As opposed to electroless plating, which depends on an autocatalytic process, electroplating involves placing the workpiece in an electrical circuit. This difference directly affects coating distribution, deposition rate, and process control.

Thickness Uniformity in Intricate Parts

Part geometry strongly affects coating distribution. Current density tends to increase around corners and exposed edges. But electroless chemistry can reach exposed recesses with greater balance.

Cost and Production Trade-offs

In many cases, electroplating is suitable for high-volume conductive products that have tighter cost targets. On the other hand, electroless work may need more time for inspection, bath control, and chemical management during the plating process.

When to Use Each Method

Electroless plating is often selected for recessed surfaces, activated nonconductive substrates, or parts requiring more uniform coverage. However, electroplating is the method of choice when the part form, material path, and budget all favor an electrical route. High-phosphorus electroless nickel generally provides better corrosion resistance, while lower-phosphorus grades may offer higher hardness.

How Plating Affects Dimensions and Surface Finish

Typical Thickness Ranges

A plated layer may add only a few micrometers or much more, and that added material changes outside diameters, groove widths, and hole sizes. Zinc plating is commonly applied at 5–25 μm, while electroless nickel coatings may range from 10–50 μm depending on corrosion and wear requirements. For precision work, the metal plating allowance belongs on the drawing before machining begins, not after dimensional inspection reveals an out-of-tolerance condition.

Surface Finish and Edge Build-Up

As the plating process introduces material, cutter marks may soften in some areas, and at the same time, raised corners collect extra deposit. As a result, the final surface finish depends on both the machined profile and the way current or chemistry reaches each face.

Tight-Tolerance Challenges in Precision Components

When tolerances are small, even a few micrometers may influence assembly clearance, thread engagement, or gauge results. Because of this, the masking strategy, plating allowance, and final inspection must be considered together during process planning.

Plating Design Considerations for CNC Engineers

Plating Allowance and Dimensional Compensation in CNC Drawings

For plated CNC parts, the drawing should make clear whether the specified dimensions apply before or after coating. This matters because even a thin deposited layer changes outside diameters, bore sizes, thread fit, and assembly clearance. In practice, external surfaces may need to be machined slightly undersized or oversize depending on the final plated requirement, while holes often require compensation before plating so the finished feature remains within tolerance. Threaded features also need attention because coating buildup tends to affect crest and root geometry unevenly, which can change engagement and gauge results. When plating is expected, dimensional allowance should be built into machining and inspection planning from the start rather than corrected after the part is already out of tolerance.

Masking Critical Surfaces Before Plating

Not every surface on a CNC part should receive plating. Some areas must remain uncoated because the added layer can interfere with function, contact behavior, or fit. Grounding faces may need direct metal-to-metal contact, bearing seats may lose fit accuracy if coating builds up, and threaded regions may become difficult to assemble if the deposit is too heavy. For this reason, masking should be defined around critical surfaces before the part enters production, not left as a shop-floor adjustment. A clear masking strategy helps protect functional geometry while allowing plating only where the surface layer actually adds value.

Inspection Planning for Plated Features

Inspection after plating should be matched to the feature, coating type, and tolerance risk. X-ray fluorescence is often used to verify coating thickness without cutting the part, especially when the requirement is tied to corrosion or wear performance. Micrometer checks may be used on accessible external features, but they only show dimensional change and do not always separate coating thickness from part geometry. Adhesion tests may also be required when coating reliability is critical, since a plated layer that meets thickness targets still fails if bonding is weak. In precision work, the inspection method should be agreed early so the plated part can be measured in a way that reflects both drawing compliance and coating function.

Plating Complex Parts and Difficult Geometries

Deep Holes and Blind Cavities

Deep bores are difficult to plate because solution flow and current access are limited inside the cavity. Shops improve reach with auxiliary anodes, tuned agitation, drain-friendly orientation, and chemistry selected for throwing power.

Threads, Sharp Edges, and Micro Features

Threads and sharp edges tend to attract higher current density during electroplating. Thread crests may receive heavier coating buildup than thread roots. Better results come from softened edges, masking, shields, and rack positions that guide the coating toward the intended areas.

Thickness Consistency Across Batch Production

Across a batch, every part must receive consistent coating exposure and process conditions. Therefore, it is important to pay attention to spacing, contact points, bath movement, and inspection coupons when plating complex part geometry that must pass the same drawing limits from the first piece to the last.

Choosing the Right Plating for CNC Applications

Matching Plating Type to Functional Requirements

You should begin with the duty. Salt exposure, sliding motion, electrical contact, heat, or appearance each point toward a different coating family. And remember, metal plating selection works best when the finish is linked to one primary job rather than a wish list.

Material Compatibility and Manufacturing Constraints

Following that, it is important to consider the base alloy, the size of the part, the masking requirements, the risk of hydrogen embrittlement, and the bath chemistry. This is because a finish that is successful on one machined material can need additional stages or a different processing route on another. High-strength steel parts may require post-plating baking to reduce the risk of hydrogen embrittlement.

Plating for Tight-Tolerance CNC Components

When selecting the plating process for tight tolerances, take into consideration the build-up amount, measuring method, and post-plate finishing procedure. The reason is that even beneficial coating growth might lead a part to extend beyond the intended drawing window.

Common Plating Defects in CNC Machined Parts

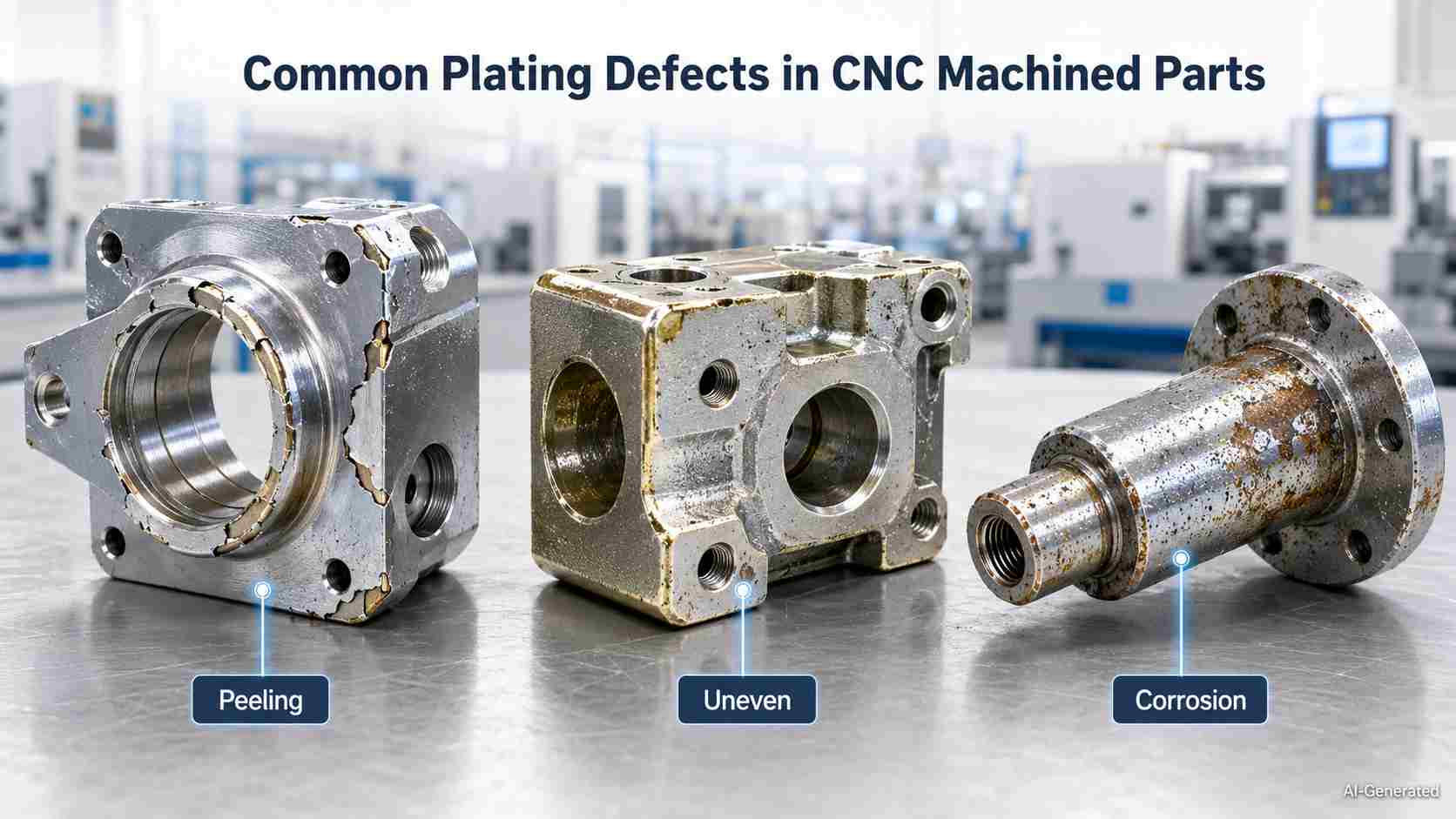

Common plating defects on CNC machined metal parts

Poor Adhesion and Peeling

Poor adhesion usually indicates insufficient surface preparation or activation before plating. For example, oil film, oxide, residue, or weak activation may cause the deposit to lift off the substrate, resulting in bare patches and the possibility of scrap.

Uneven Thickness and Coverage

After adhesion, part geometry and bath conditions often become the next source of defects. For instance, current crowding, inadequate racking, low solution movement, or chemical drift may leave high portions overbuilt and concealed zones undercoated.

Corrosion and Premature Coating Failure

Corrosion might begin where pinholes, pits, cracks, or incompatible layers allow the service environment to reach the base alloy. This is exactly why metal plating failures demand both visual review and root-cause checks before release.

Plating vs Other Surface Finishing Methods

Plating stands out when a CNC part needs a metallic surface layer for corrosion resistance, conductivity, wear control, or solderability. However, it is not always the best finishing route for every geometry or tolerance window. Compared with anodizing, black oxide, or powder coating, plating usually requires closer attention to thickness buildup, coverage variation, and process control before it is specified on the drawing.

Conclusion About Plating

Successful plating usually depends on early process planning. When the chosen coating matches the operating setting, substrate, drawing allowance, and inspection plan, a CNC part leaves the shop with performance in its outer layer rather than being added as an afterthought. For teams ready to order machined components with suitable finishing options, JLCCNC provides online CNC machining and sheet metal fabrication with material and surface-finish choices to move from design review to quote, as well as keep the metal plating and plating process decisions as per production needs. Upload your CAD file to get a fast quote starting from $1, with lead times as short as 3 days.
